AGILIOS Pan & Tilt Push Camera

*Optional: ATEX Rated for Zone 1 Hazardous/Explosive Atmospheres

AGILIOS™ Pan & Tilt Push Camera Overview:

The AGILIOS™ push camera system consists of the AT90II or the AR901 cable reel coiler with a reinforced, yet flexible push rod of up to 90m (300 Ft) length; a choice of either the VC50 or VC200 control panel, The AC40, AC42, AC52 axial cameras and/or the PT 7011 pan & tilt camera head.

Cable Reels

AR90II Cable Reel Coiler

• Extremely robust and splash-proof for the use under harsh conditions
• Easy transport through large all-terrain wheels
• Space-saving storage through removable wheels
• Operation in vertical and horizontal position of the coiler possible
• Portable use through battery operation
• Integrated racks for two exchange batteries
• Automatic switching from battery 1 to battery 2
• Battery charging through external power supply
• AC Power operation
• Extremely robust, yet flexible push rod
• Meter counter
• Analog Video OUT interface
• Reel brake
• Rotatable and pivoting control panel mounting for flexible adjustment of the control panels
• Compatible with the control panels VC200 and VC50

AR90I Cable Reel Coiler

• Compatible with portable operator panel VC200
• Inspection according to predefined standards
• Extremely robust, yet flexible push rod
• Operation in vertical and horizontal position of the coiler possible
• Meter counter
• Reel Brake
• Swivel arm to mount the mobile control panel VC200
• AC or battery operation possible (optional)
• Side bag for storing the mobile control panel VC200, power cable and battery pack

Control Panels

Visioncontrol VC50 Control Panel

• High resolution CCD-color camera
• TFT screen with a resolution of 800 x 600px
• Multi-functional, portable control panel, usable with AGILIOS™ push camera system Low weight and ergonomic design
• Robust and splash-proof construction
• Integrated membrane keyboard for text overlay, operable with gloves
• Direct access to function keys during inspection
• Freely configurable buttons and keyboard keys
• Data display can be customized
• Video recording in AVI, picture recording in PNG
• Data storage on USB device or internal drive
• Data transfer via USB 2.0 interface
• Compatible with AGILIOS™ coiler AR90II

Visioncontrol VC200 Control Panel

• Multi-functional portable operator panel suitable for ROVION® Pipe crawler and AGILIOS™ push camera
• Basis for operating software Visionreport
• Inspect according to predefined standards
• Data display can be customized as desired
• Video recording in MPEG-4 AVC/H.264, picture recording in .BMP
• Data storage on an internal CF-card (64GB)
• Data transfer via USB and Ethernet
• Touch-Screen suitable for daylight with a resolution of 800 x 600 pixels
• Keyboard & mouse can be connected via USB
• Low weight and ergonomic design
• Detachable harness

Camera Head Options

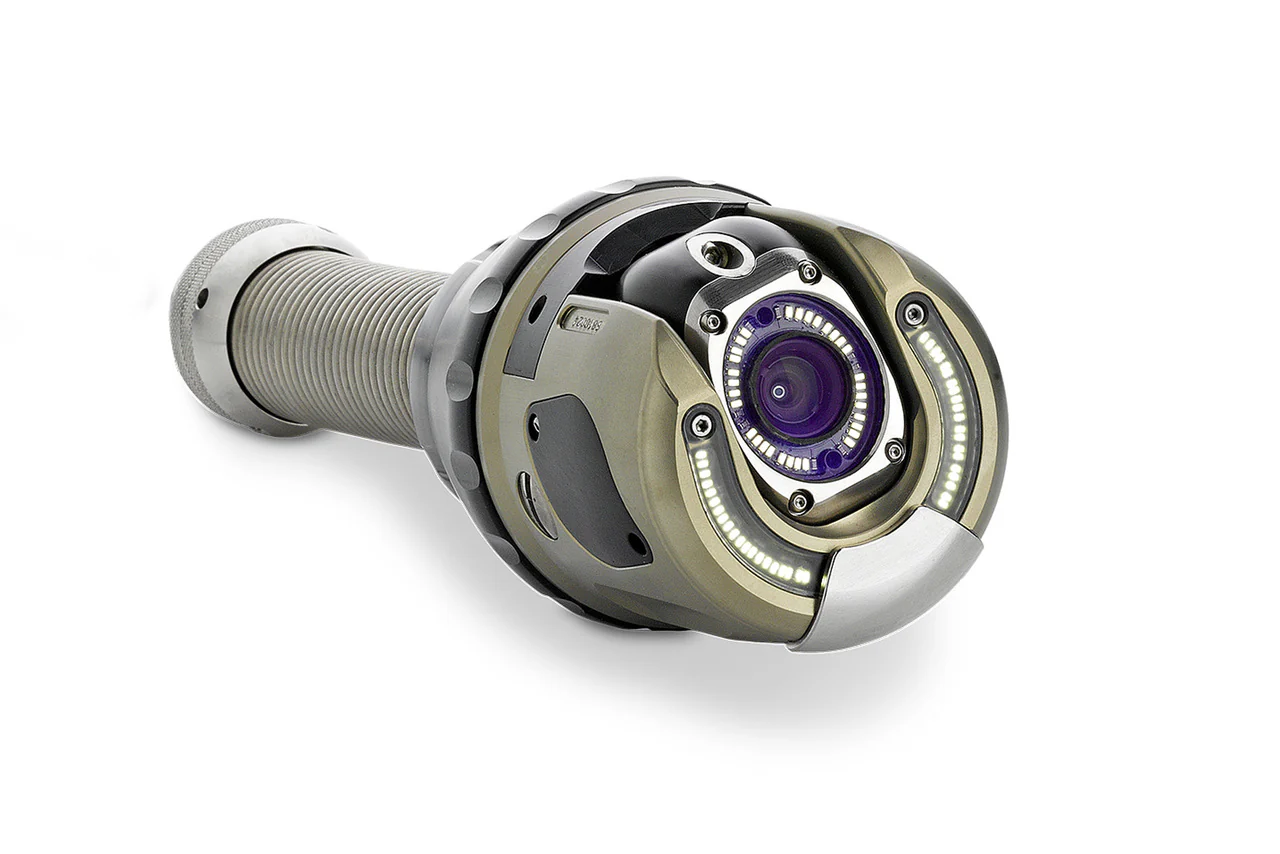

PTP 7011 Pan & Tilt Camera Head for use on pipes with a diameter of 100 to 300mm (4” to 12”)

• High resolution CMOS color camera
• Rotation and pan unit integrated in the camera head
• Panning range of -20° up to +110°.
• Endless rotation range
• Powerful homogeneous illumination through LED lighting
• Light control from 0 - 100%
• Impact-resistant lighting ring with integrated, interchangeable bumper
• Self-leveling picture
• Integrated laser to determine crack widths
• Location transmitter can be activated
• Indication of the panning and rotation angle on the LCD monitor
• Internal pressure indication
• Optionally available as EX version (ATEX Zone 1)

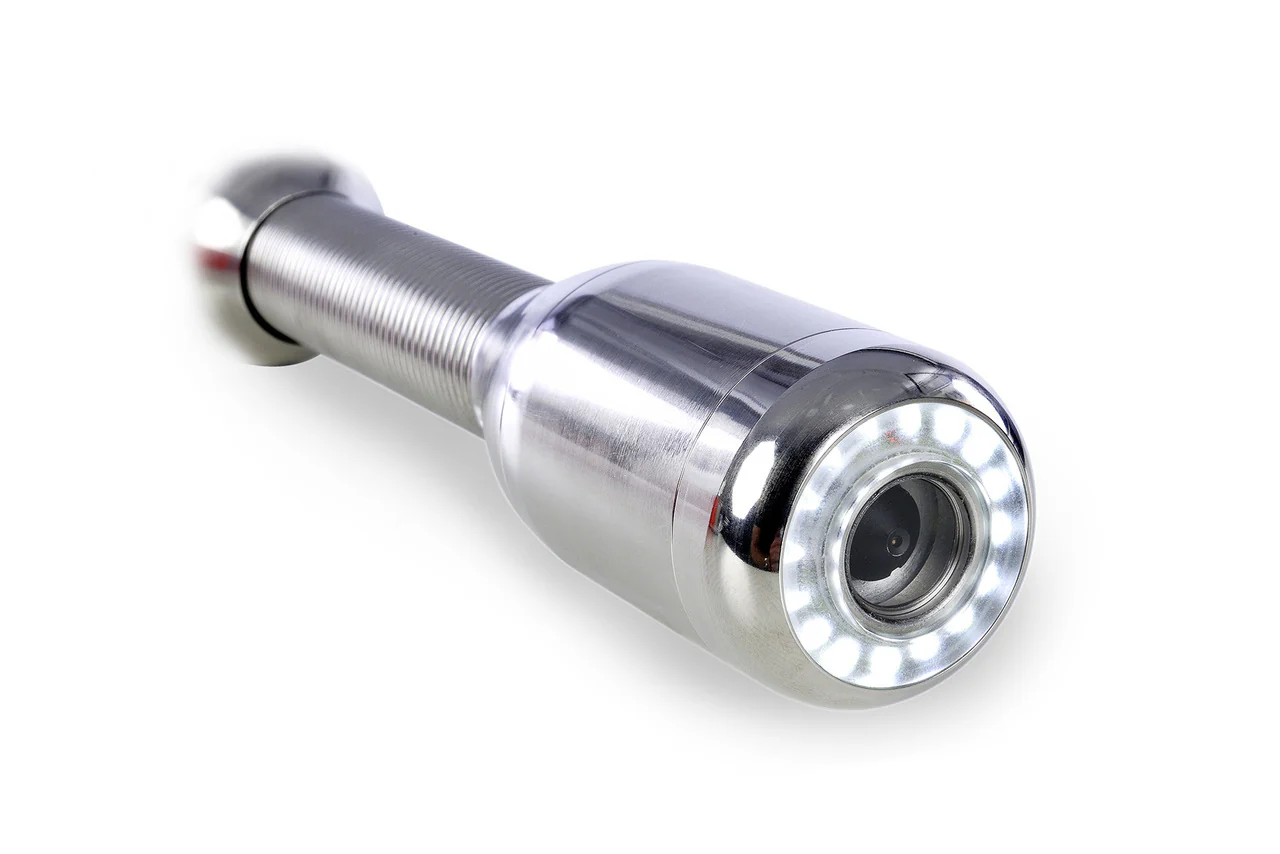

AC52 axial camera head for use on pipes with a diameter of 60 to 200mm (2” to 8”)

• High resolution CCD color camera
• Homogeneous illumination through LED lighting
• Light control from 0 - 100%
• Impact-resistant lighting ring
• High sensitivity to light
• Self-leveling picture
• Location transmitter can be activated or switched over
• Stainless steel housing
• ATEX Zone 1 Certified

AC42 axial camera head for use on pipes with a diameter of 50 to 200mm (2” to 8”)

• High resolution CCD color camera
• Powerful homogeneous illumination through LED lighting
• Light control from 0 - 100%
• Impact-resistant lighting ring
• High sensitivity to light
• Self-leveling picture
• Stainless steel housing

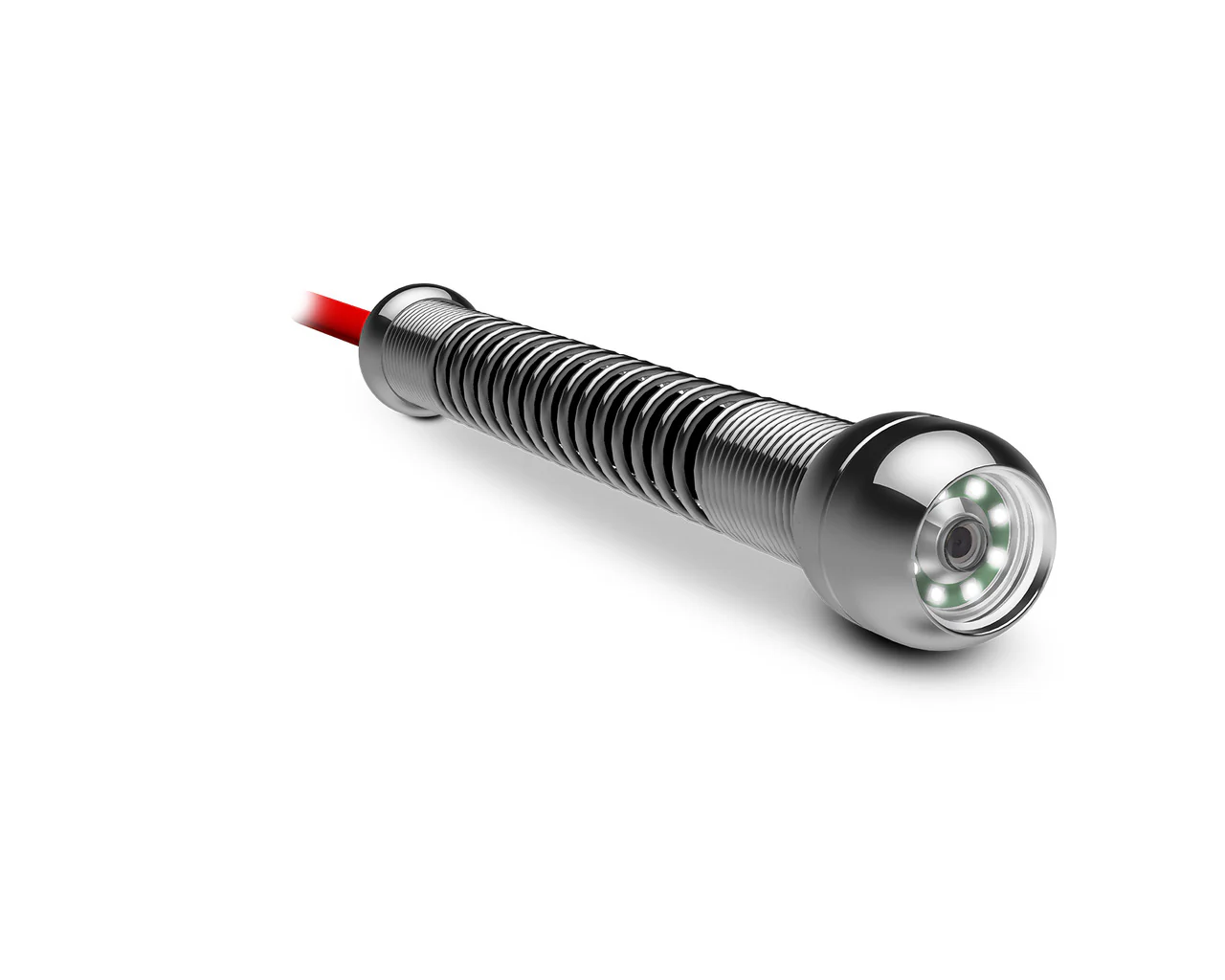

AC40 axial camera head for use on pipes with a diameter of 50 to 200mm (2” to 8”)

• High resolution CCD color camera
• Homogeneous illumination through LED lighting
• Light control from 0 - 100%
• Extremely robust design
• Impact-resistant lighting ring
• High-pressure rating (10 bar)
• High sensitivity to light
• Self-leveling picture
• Easy location/tracking strong locating spoil
• Stainless steel housing
• Optionally available as EX version (ATEX Zone 1)
